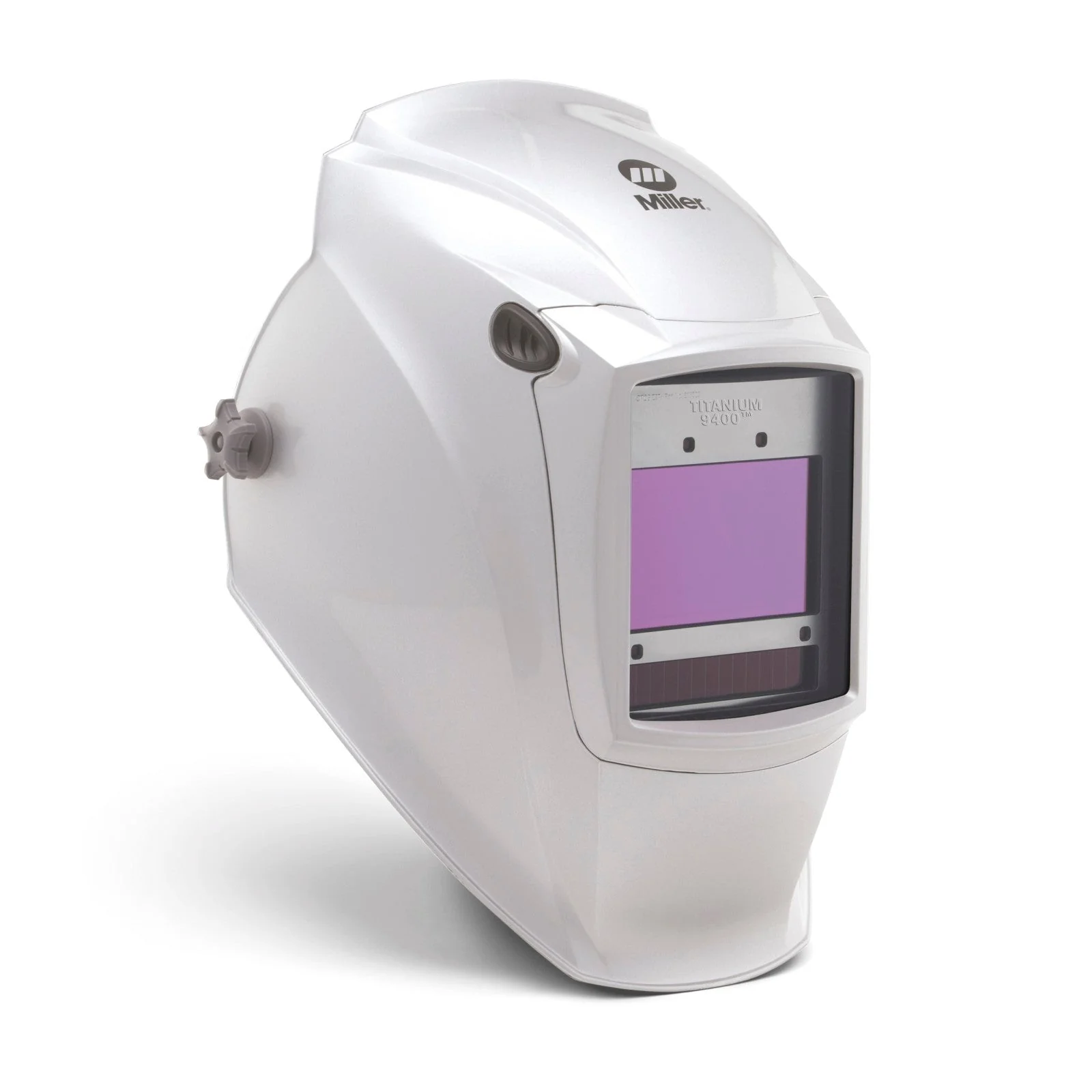

Miller Digital Titanium 9400 Series Auto Darkening Welding Helmet (256176)

• New &trade - exclusive arc tracking technology
• New External grind control &ndash switch to grind mode with the push of a button

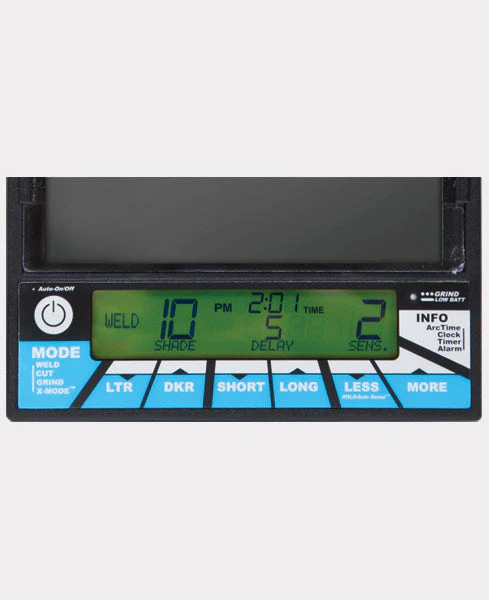

• New Digital controls allow user to easily adjust mode and settings
• New Redesigned headgear features additional adjustability settings for better fit &amp comfort
• New 3 Year Warranty
• 9.22 sq. in viewing area allows for maximum view of work piece
• Aluminum heat shield protects the lens in high amperage applications
• Silver shell reflects heat to keep helmet and user cool
• Durable shock-absorbing gasket protects lens from drop impact
• Four Operating Modes - Weld, Cut, Grind and X-Mode
• Auto-On/Off power control triggers lens at the strike of an arc
• Auto Sense &ndash feature that sets sensitivity based on environment
• Quick Release front cover allows convenient access to change front cover lens

Specs:

• Viewing Area &ndash 9.22 sq. in. / 3.85 x 2.38 in (97 x 60 mm)
• Four Arc Sensors - 1/20,000 sec lens speed
• Four Operating Modes -
  • Weld Mode &ndash Shades #8 - 13
  • Cut Mode &ndash Shades #5 - 8
  • Grind Mode - Light State #3
  • X-Mode &ndash Can be used in Shades #8 - 13
  • • Electromagnetic Arc Sensing eliminates: Sunlight interference - Outdoors, Low-Amperage Lens Opening - TIG, Lens Openings - Pipe/Curves, Obstructed Sensors - Hidden/Cavity Welds
• Sensitivity and Delay Control - .10 &ndash 1.0 sec.
• TIG Rating &ndash 5 amps and below
• Lithium batteries (2) &ndash with solar assist up to 3,000 hours
• Weight - 24 oz (680 g)
• Meets Ansi Z87.1-2003 (High Impact) standard

216326 Outside Lens Pkg Of 5

216327 Inside Lens Pkg Of 5
