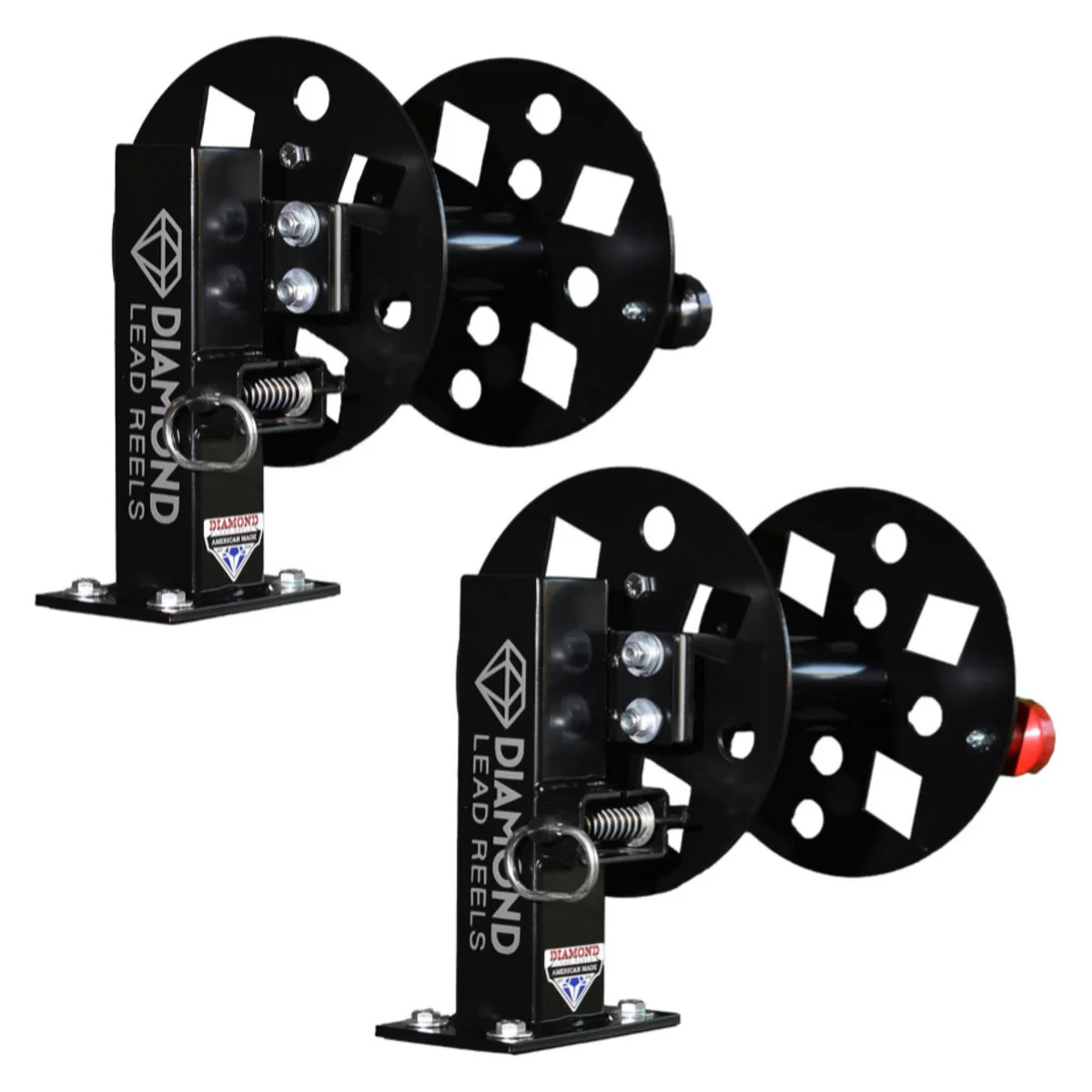

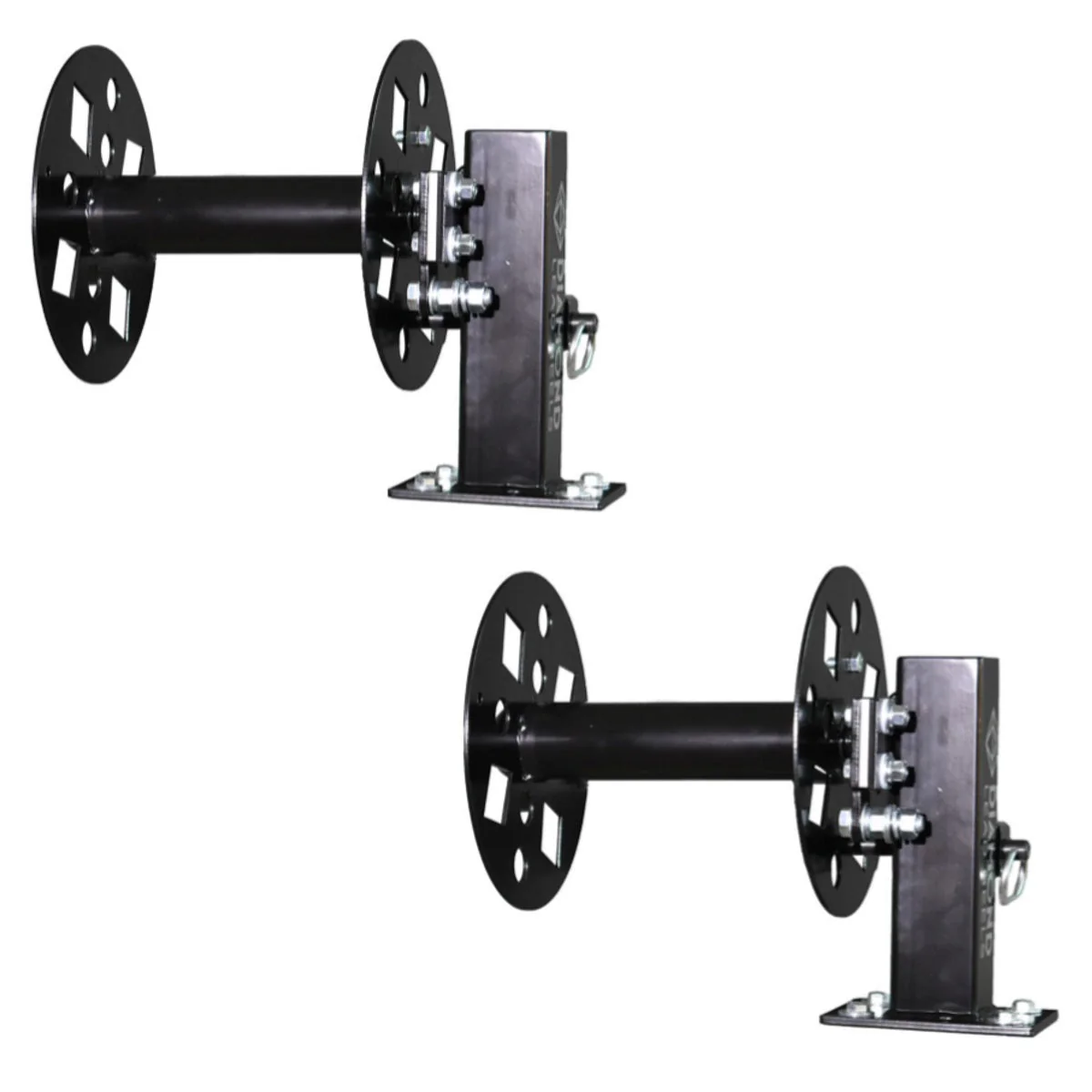

Diamond Lead Reels HD Fixed Base Pair of Single Reels (FBS-SETXXBLK)

The Diamond Lead Reels are built to last a lifetime with heavy-duty construction and ZINC coated steel. These reels come with a fixed base that stays connected to the welder, giving you a "live reel setup". These are sold as a pair so you can mount them separately anywhere you wish. These reels are rated up to 600 amps and come with an adjustable friction brake to help the user set the desired tension. Choose your desired reel diameter - 10 inch or 12 inch. Made in the USA

Features
• Stays connected to the welder at all times
• Comes standard with 600 Amp capacity
• 1/2" Terminal connections
• Vented circle design allows free air-flow to aid cooling
• Heavy-duty adjustable manual friction brake - prevents free spooling during roll-out
• Locking pull pins secure cables while not in use
• Reels are rebuildable with full line of replacement parts

Construction
• Heavy-duty all steel construction
• All hardware is Zinc coated
• Dual ball bearing spools
• Powdercoated finish

Cable Capacity
• 10" Reel: 150' of 1/0 Cable or 125' of 2/0 Cable
• 12" Reel: 200' of 1/0 Cable or 175' of 2/0 Cable

Warranty
• Lifetime warranty on steel construction and workmanship
• 1 Year warranty on spools, bearings, and pins
